Detail produk:
|
| Bahan: | aspal | Ukuran Min Bore: | Φ20 |
|---|---|---|---|
| Ukuran Max Bore: | Φ63 | Port ukuran: | PT1 / 8, PT1 / 4, M5x0.8 |
| Ukuran pemasangan: | HoleΦ6.8 | Sensor switch: | Ya |

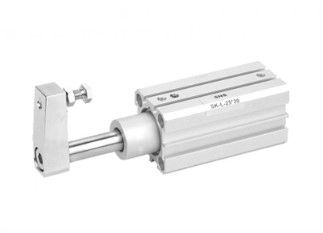

Enerpac Aluminium Alloy Swing Clamp Piston Air Cylinders Clamp Otomatis
| Ukuran Bore (mm) | SEBUAH | B | C | D | E | F | G | H | saya | J | K | L. | M. |
| Φ20 | 92.3 | 82.3 | 59.5 | 20.3 | 15.5 | 7.5 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6 × 1.0 × 25 Baut segi enam |
| Φ25 | 93.6 | 83.6 | 61.2 | 20 | 15.5 | 8 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6 × 1.0 × 25 Baut segi enam lts |
| Φ32 | 113 | 98 | 64 | 31 | 18.5 | 9 | PT1 / 8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8 × 1,25 × 40 Baut segi enam |
| Φ40 | 114.8 | 99.8 | 66.5 | 30.3 | 18.5 | 10 | PT1 / 8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8 × 1,25 × 40 Baut segi enam |
| Φ50 | 159.9 | 140.9 | 78.6 | 59.6 | 22 | 10.8 | PT1 / 4 | 94 | 60 | 20 | 8 | 32 | M10 × 1,5 × 50 Baut segi enam |
| Φ63 | 162.8 | 143.8 | 82.5 | 58.6 | 22 | 11 | PT1 / 8 | 94 | 60 | 20 | 8 | 32 | M10 × 1,5 × 50 Baut segi enam |
| Ukuran Bore (mm) | N | N1 | HAI | P | Q | R | S | T | U | V | ZE |
| Φ20 | 5 | 12 | 24 | 34 | - | Lubang Φ 4.3, Thread ΦM 5 × 0.8x6 Kedalaman; Lubang balasan erb Kedalaman 7x5; (2 sisi) | M8x1.25 | 15.9 | 8 | 19 | 12 |
| Φ25 | 5 | 12 | 28 | 40 | - | Lubang Φ5.1 , Thread ΦM 6 × 1 x8 Kedalaman; Lubang balasan Φ8 x6 Kedalaman; (2 sisi) | M8x1.25 | 15.9 | 10 | 24 | 12 |
| Φ32 | 6.5 | 14 | 34 | 44 | 50 | Lubang Φ5.1 , Thread ΦM 6 × 1 x8 Kedalaman; Lubang balasan Φ8 x6 Kedalaman; (2 sisi) | M10x1.5 | 19 | 10 | 30 | 16 |
| Φ40 | 6.5 | 14 | 40 | 52 | 58 | Lubang Φ6.8 , Thread ΦM 8 × 1.25 x10 Kedalaman; Lubang counterbore Φ9,5 x8 Kedalaman; (2 sisi) | M 10 x1.5 | 19 | 12 | 30 | 16 |
| Φ50 | 8 | 18 | 48 | 62 | 71 | Lubang Φ6.8 , Thread ΦM 8 × 1.25 x10 Kedalaman; Lubang counterbore Φ11 x8.5 Kedalaman; (2 sisi) | M 12 x1.75 | 25.3 | 12 | 39 | 20 |
| Φ63 | 8 | 18 | 60 | 75 | 84.5 | Lubang Φ6.8 , Thread ΦM 8 × 1.25 x10 Kedalaman; Lubang counterbore Φ11 x8.5 Kedalaman; (2 sisi) | M 12 x1.75 | 25.3 | 12 | 50 | 20 |
